Bellflower Metal Gates designs, fabricates and installs metal gates in La Habra, building driveway and entry gates, long-driveway estate entrances, pedestrian gates and the automation and access control behind them. We work in steel, wrought iron and aluminum, cut and welded in our own shop rather than assembled from stock panels.

La Habra has a lot pattern that shapes gate work distinctively. Much of the city sits on ground that was agricultural well into the twentieth century, and the parcels that came out of that history are frequently deeper than the frontages around them suggest. A deep lot means a long driveway, and a long driveway changes almost every decision about a gate: where it should sit, how it gets power, how someone at the house knows who is at the gate, and how a visitor gets in.

The gate position is the first question and the one most often answered badly. Setting it at the property line puts it under whatever front-yard height limit applies and leaves any arriving vehicle waiting in the road. Setting it back up the driveway gives room for a vehicle to pull clear of the street, and behind the required front yard the permitted height is usually greater. That single decision is worth more than most of the hardware choices that follow it.

Long Driveways and Deep Lots

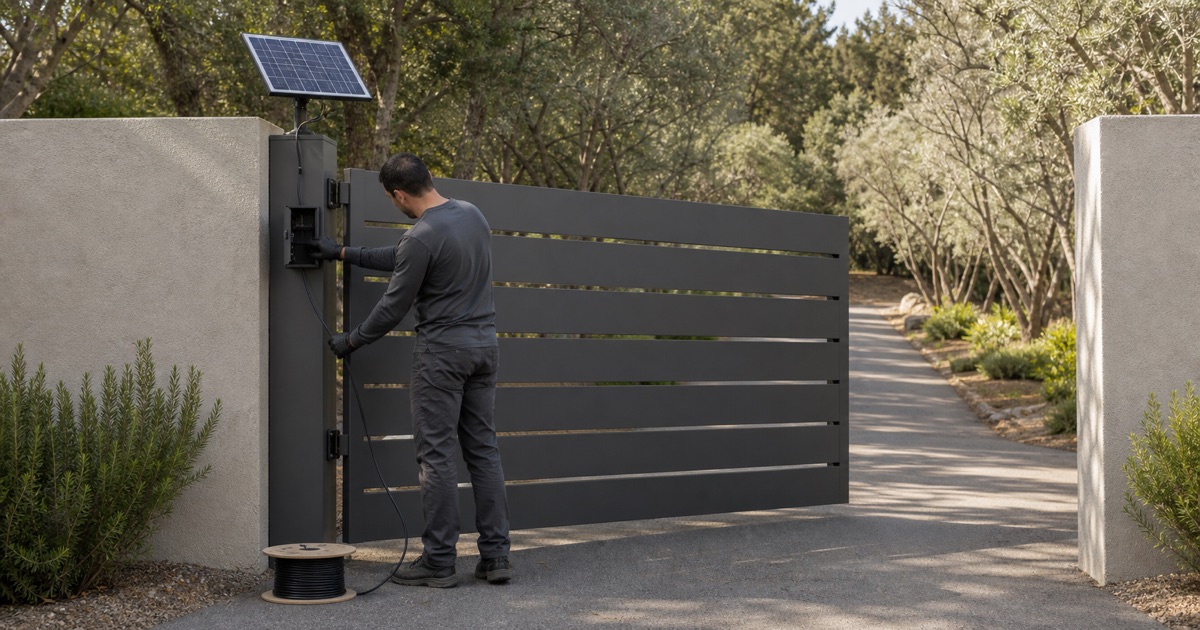

Installer feeding solar cable from a spool into a gate post

Where the Gate Should Sit

On a deep lot the gate can go at the frontage or set back up the drive, and the two produce quite different outcomes. Set back, a vehicle clears the roadway while waiting, deliveries have somewhere to stop, and the height available is generally more generous than at the property line. We work the position out against the driveway length, the turning space and the height limit that applies to each location before committing to a design.

Power, Solar and Cable Runs

A gate a long way from the house has to be powered somehow, and trenching a long mains run is frequently the most expensive line on the quote. A correctly sized solar operator with battery backup avoids it entirely, and it is a genuine solution rather than a compromise provided the panel and battery are matched to the daily cycle count rather than to the operator’s nominal rating. Undersized solar is why these systems get an undeserved reputation.

Knowing Who Is at the Gate

Distance is the practical problem on a deep lot: somebody at the house cannot see the gate. Video intercom answers it, and cellular controllers go further by putting the call and the release on a phone from anywhere. We check cellular signal at the actual gate position rather than at the house, because coverage at the building says nothing useful about coverage two hundred feet down a driveway lined with mature planting.

Turning, Passing and Vehicle Space

A long driveway needs somewhere for a vehicle to wait while the gate opens and somewhere for two vehicles to pass or turn. We look at that as part of the gate design rather than treating it as a landscaping question, because a gate that opens perfectly into a driveway with no waiting space simply moves the problem to the street, which is where it becomes everybody else’s.

Looking for metal gates closer to La Habra Heights? See Metal Gates in La Habra Heights.

Estate and Deep-Lot Entrance Gates

Entrances Proportioned to the Approach

A gate seen from a distance down its own driveway has to be proportioned for that view rather than for a photograph taken square-on. Taller, wider entrances with substantial pilasters read correctly on a long approach where a domestic-scale gate looks lost. We draw the entrance to the actual sightline, since the first impression of a deep lot is formed at the road and the gate is most of it.

Ornamental Ironwork and Detail

La Habra was the largest avocado centre in Southern California by 1928, and the properties that came out of that era frequently carry period detail worth matching. Arched top rails, twisted and hammered pickets, scrollwork panels and cast detail all suit these entrances. We draw the arch to the actual opening rather than to a stock radius, because a curve that does not relate to the pilaster spacing reads wrong from the approach.

Matching Fencing, Pilasters and Railings

An entrance that does not relate to what stands either side of it looks bought rather than designed. We fabricate matching fence panels, pilaster infills and railings to the same picket spacing, rail heights and finish, and where existing ironwork is being extended we measure and photograph it first. Where the original finish is failing we recommend recoating the whole run, so new and old do not visibly diverge within a couple of seasons.

Pedestrian Entrances Alongside

A separate pedestrian gate beside the vehicle entrance keeps people out of the driveway and takes far more daily use than the main gate. It wears at its hinges and latch faster for it, so we fit ball-bearing hinges with grease fittings and a closer sized to carry the leaf to the latch. Getting latch geometry right matters here more than anywhere, since a gate that will not latch reliably gets propped.

Automation on Long Approaches

Operators for Large Entrance Gates

Wide entrance leaves are heavy and carry considerable leverage about the hinge, and the operator has to be specified from that rather than from the opening width. We weigh or calculate the leaf, establish the daily cycle count, and select with margin rather than to the rating, matching the UL 325 class to the application. An operator run permanently at its limit has no reserve for a stiffening hinge or a windy day.

Safety Devices on a Wide Opening

A wide gate sweeps a large area and needs its entrapment protection thought through rather than fitted as an afterthought. UL 325 requires two independent means, monitored by the operator so it refuses to run when one is faulted. We add inductive loops on longer approaches, with a safety loop holding the gate open while a vehicle is beneath it and a shadow loop preventing closure onto a vehicle stopped in the opening.

Emergency Access Up a Long Driveway

A gated deep lot has to admit fire apparatus, and the distance from the road makes it more important rather than less. California Fire Code fire apparatus access road requirements drive the arrangement, usually a Knox box or a fire department key switch wired directly to the operator. We settle this at design stage with the authority having jurisdiction, since retrofitting emergency access to a remote gate is disproportionately expensive.

Handover and Settling

You receive a written handover covering operator programming, remote and credential pairing, and the manual release, which matters more on a long driveway where walking to the gate in a power cut is a genuine inconvenience. We return once the gate has settled on its footings to re-level the hinges and re-tension the hardware, because steel and concrete both move over the first weeks.

Fabrication, Materials and Finish

Built to the Opening in Our Shop

Every leaf is cut, welded, prepared and coated by us, drawn to the measured opening so picket spacing stays even across a wide entrance instead of collecting the accumulated error at one end. A panel damaged in handling is remade the same week rather than reordered, and we keep the dimensioned drawing so a replacement section years later matches the original rather than approximating it.

Steel, Iron and Aluminum

Steel and wrought iron carry a wide span stiffly and take a repair weld years later, which matters on a long entrance leaf where deflection is the enemy. Aluminum extruded from 6005-T5 and 6061-T6 alloy will not corrode and is lighter, reducing load on hinges and operator. On wide entrance gates the stiffness argument usually decides it in favour of steel.

Coating and Long-Term Protection

Steel is prepared and coated before the frame is assembled, so the inside faces and joint interiors are protected rather than sealed in bare where nothing can reach them again. Welded joints receive zinc-rich primer with TGIC polyester powder coating over the top, and where a gate stands in irrigation overspray or standing water, hot-dip galvanizing to ASTM A123 goes underneath the finish.

Posts, Footings and Local Rules

Wide leaves put substantial overturning force into their hinge posts, so we size footings to the leaf weight and its leverage rather than to a standard depth, allowing for cycling loads on automated gates. Height limits and approval thresholds are set by each city separately, so we confirm the rules governing the property, and where the gate sits on the driveway, before a design is drawn.

Repair and Restoration in La Habra

Restoring Older Ornamental Ironwork

Properties here often carry ironwork worth keeping rather than replacing. The bottom rail corrodes first because it holds water and takes sprinkler overspray, and where the rest of the leaf is sound we cut out the affected section, weld in new ASTM A787 steel tube, prime with zinc-rich primer and recoat. That is almost always the better economics, since reproducing period scrollwork and cast detail costs far more than the frame ever did.

Hinges, Posts and Recovering Alignment

A wide entrance leaf that has dropped has usually lost its diagonal brace, worn its hinge pins oval, or settled on a footing that was never sized for the leverage a long leaf applies. We rebuild the hinge stile where the pockets have worn rather than fitting larger hardware into a damaged frame, and where the footing has moved we reset it, because a post that has shifted once is carrying more than it was sized for.

Automating a Gate You Already Have

An existing entrance gate can usually be automated once assessed. The leaf has to be square and rigid, the hinges and footings sound, and the construction compliant with ASTM F2200, which addresses pinch and shear points a hand-operated gate never had to consider. Where a leaf has sagged we correct it first, since fitting an operator to a gate that already drags simply transfers the resistance into the motor and shortens its life.

Long-Driveway Fault Finding

Faults on a remote gate are harder to diagnose because the wiring run is long and buried. Voltage drop across a long run presents as an intermittent fault that comes and goes with load, which is why we measure at the operator rather than at the supply. Where direct-buried cable has corroded through we pull new wire in conduit, so the same repair does not recur in another few years.
