Bellflower Metal Gates installs automatic gate operators across Bellflower, California, serving surrounding cities including La Mirada, Cypress, Buena Park, Pico Rivera and Stanton. We automate swing, slide, cantilever and bi-fold gates, both gates we have fabricated ourselves and existing gates installed by others, and we supply and service LiftMaster, DoorKing, HySecurity and FAAC equipment.
An automatic gate is a machine that moves several hundred pounds of steel across a space people and vehicles occupy, and almost everything that goes wrong with one traces back to a specification made from the wrong number. The number most commonly used is the opening width, because it is the easiest to obtain over the phone. The numbers that actually matter are the weight of the leaf, its leverage about the hinge, and how many times a day it will run. An operator chosen from width alone is a coin toss.
We take those measurements before recommending anything. That means establishing the leaf weight, checking whether the gate is square and rigid enough to be driven at all, confirming the footings will take cycling loads rather than only static ones, and asking how the property actually uses the gate. A gate serving eight units is a commercial-duty application even though the building is residential, and specifying it as residential guarantees an early failure.
Choosing and Sizing the Operator
Matching the Operator to the Leaf
Every operator carries a rated leaf weight and width, and those ratings assume a gate that is square, freely moving and correctly hung. We measure against them with margin rather than to the limit, because a unit run permanently at the top of its rating has no reserve for a windy day, a stiffening hinge or a gate that has picked up a slight drag. Sizing with headroom costs a little more once and saves the cost of replacing a burnt-out operator and everything downstream of it.
UL 325 Duty Classes
UL 325 classifies operators by application: Class I for single-family residential, Class II for multi-family and commercial with general access, Class III for commercial and industrial with limited access, and Class IV for restricted-access sites with trained supervision. The class is not a marketing tier, it describes the duty the unit is built to withstand. We select the class from how the gate is genuinely used rather than from the type of building it happens to stand in front of.
Swing, Slide and Cantilever Operators
The mechanism follows the gate type. Swing gates take arm or articulated-arm operators, or underground units where the installation must be invisible. Slide and cantilever gates take rack-driven or chain-driven operators sized to the leaf length and weight. Each has its own failure mode, and we specify for it: arm operators put concentrated load into the hinge post, while rack-driven units depend on the rack staying properly aligned to the pinion along the whole run.
Solar Operators and Battery Backup
Where a mains supply would mean trenching a long driveway, a solar operator with battery backup is frequently both cheaper and simpler. The specification that matters is not the operator but the panel and battery, sized to the daily cycle count and to the worst realistic run of overcast days rather than to an average. Battery backup is also worth specifying on mains-powered gates, particularly community and commercial installations where an outage otherwise strands vehicles.
Safety, Standards and Compliance
UL 325 Monitored Entrapment Protection
An automatic vehicular gate requires two independent means of entrapment protection, and current operators monitor those devices continuously, refusing to run if one fails or is disconnected. That behaviour is deliberate and it is the single most important safety feature on the machine. We install monitored photo eyes and safety edges to the operator’s monitored inputs, and where a nuisance fault keeps recurring we find and fix its cause rather than bridging the input out to stop the complaint.
ASTM F2200 and the Gate Itself
Most entrapment incidents involve the gate rather than the operator: a gap that closes as the leaf travels, an exposed roller, a picket passing close to a fixed post. ASTM F2200 addresses exactly those construction details, and it applies whether the gate is new or is an existing one being automated. We assess an existing leaf against it before quoting automation and include any screening, guarding or edge protection the standard calls for in the written scope.
Loop Detection and Vehicle Sensing
Inductive loops cut into the driveway do three distinct jobs. An exit loop opens the gate for a vehicle leaving, a safety loop holds it open while a vehicle is beneath it, and a shadow loop prevents closure onto a vehicle stopped in the opening. Gates that close on cars are usually missing the second or third. We saw-cut and seal loops into the surface rather than surface-mounting them, since a proud loop is destroyed by tire traffic within weeks.
Emergency Services Access
A gated driveway that fire apparatus may need to enter requires an approved means of access, normally a Knox box or a fire department key switch wired to the operator, driven by California Fire Code fire apparatus access road requirements. This is agreed with the authority having jurisdiction and designed in from the start. Retrofitting it after an inspection failure costs several times what including it would have, and it is one of the easiest items to settle early.
Our Step-by-Step Automation Process
Assess the Gate and the Opening
We check the leaf for square and rigidity, the hinges and footings for wear and movement, the driveway for slope and crown, and the site for available power. Where the gate needs work before it can be driven, that comes first and is priced separately.
Specify and Approve
You get the operator selection, its UL 325 class, the safety devices and the access hardware in a written proposal before anything is ordered, along with what we found on the existing gate. Anything we identified but were not asked to address is listed separately, so nothing on that list proceeds without your agreement.

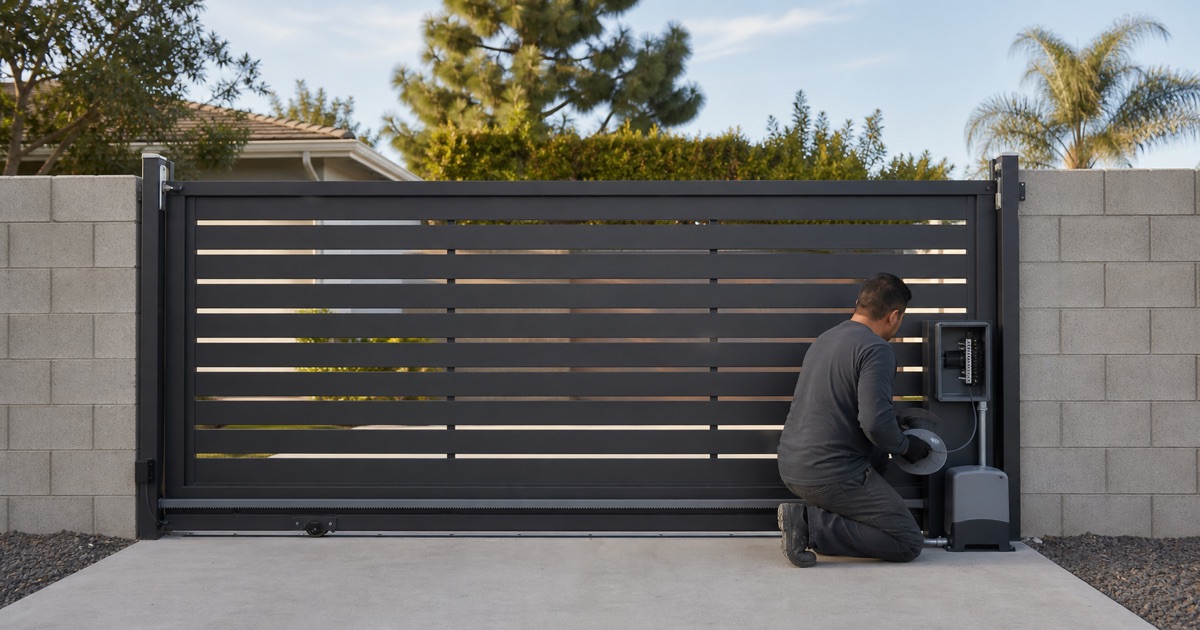

Install, Wire and Commission
Conduit and cabling go in, the operator is mounted and aligned, safety devices are installed to the monitored inputs, and loops are cut and sealed. The gate is then run through its full travel under load with every safety device tested rather than assumed working.
Handover and Follow-Up
You receive a written handover covering opener programming, remote pairing and the manual release. We return once the gate has settled to re-level hinges and re-tension hardware, because a newly automated gate beds in over its first weeks.
